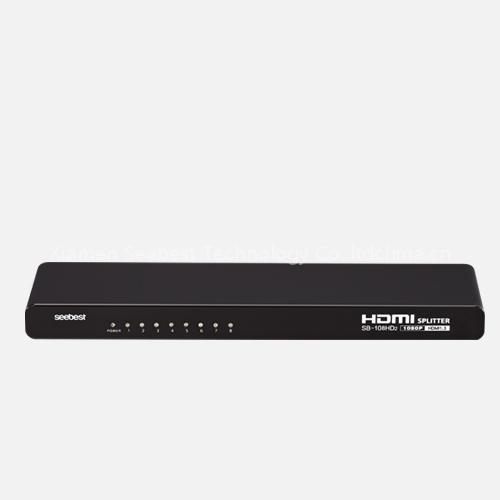

one input eight outputs HDMI splitter

1.Capacity to buffer and amplify HDMI signal;2.Support resolutions 720i/720p/1080i/1080p;3.Support HDCP equipments; 4.Support HDMI 1.3 version;5.1 HDMI input, and 8 consistent and simultaneous HDMI outputs; 6.Reset function is available(by pressing RST), when it comes to abnormal condition.7.When the output load is normal, relevant indicating lamps in front panel are lighting 8.Swift installation, and user friendly operation.ItemType SB-108HD2 SB-108HD3

Date total bandwidth 6.75Gbps(max)

Vertical scan frequency 50-85Hz

Support Resolution 480i,480p ,720i,720p,1080i,1080p

Support HDCP Device

Input/output connector HDMI Type

Input number 1 way

Output number 8 ways

Output voltage of adapter DC 5V/5A

Power consumption 20W(max)

Dimension 340x135x34(mm)
