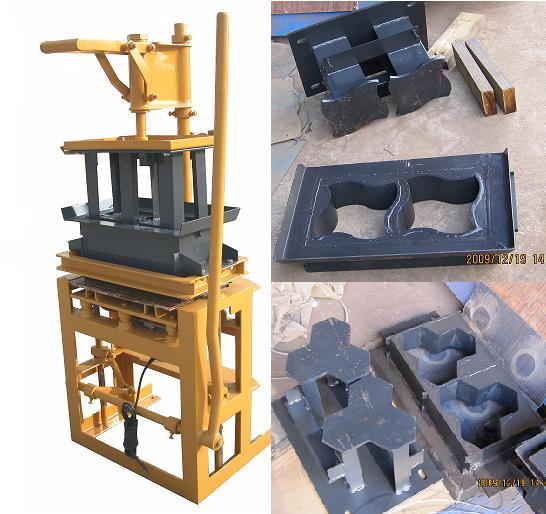

single block moulding machine - BM1 Specificaton & Trade Terms
| Model | BM1 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Jack Yao from Topall machinery welcome your inquiry.
Topall, expert on concrete mixers,dumpers,block machines,concrete batching plants,vibrators,lifters,rollers and loaders.
You could also call Jack Yao for more details.
One Block machine (847480200)
Technological specifications
Model BM1-3G
Rated time for per cycle(s) 140
Max. size of pallet (mm) 550*350
Power source EY20-3D robin engine
2.6kw 3600r/min
Total power(kw) 3
Total weight(kg) 165
Overall size (L*W*H) (mm) 730*790*1500
Block Numbers per stroke (pcs)
460*230*230mm 1
100*200*80mm 4
Capacity per day or 8 hours (pcs)
460*230*230mm 200
100*200*80mm 800
It is suitable for 2-3 persons to work on it,and ease to operate, it can produce both hollow blocks, solid blocks, and paving stones as well.
