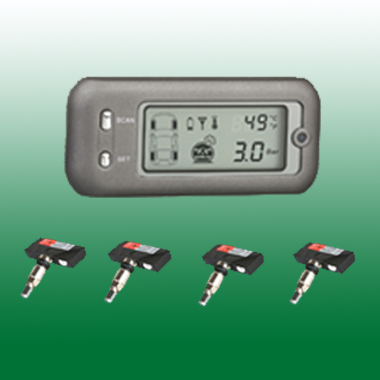

tire pressure monitoring system - AT-001 Specificaton & Trade Terms
| Model | AT-001 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
· All weather detection
· LCD display,white background light
· Three-stage LED display of status
· Friendly operation-interface
· Inflating-valve installation
· Working voltage range:2.1-3.6VDC(high-powered battery inside)
· Supply current:Standby:Standby: 0.6uA, transmitting: 9mA
· Working temperature:-40~125℃
· Transmitting frequency:433.92MHz
· Transmitting power:>5dBm
· Modulating method:FSK
· Measurable pressure:0～3.5bar(0～350KPa、0～50.8PSI、0～3.58×104kgf/m2)
· Measurable temperature:-40~120℃
· Battery life:Above 5 years
· Size:70×33×25mm3
· Weight:38g
